Heat Press Guide
|
|
|
Reading time for 7 min
Did you know that using the correct temperature and time settings is crucial for achieving the best results with your HTVRONT heat press?
Improper settings can lead to faded prints, blurry graphics, or even damaged materials. This guide will equip you with the knowledge you need regarding HTVRONT heat press temperature and time settings, helping you craft projects that will turn heads.
We'll cover:
- Recommended temperature and time settings for different materials and machines
- How to adjust settings based on your specific project
- Troubleshooting common issues
By following the tips in this guide, you'll be able to confidently use your HTVRONT heat press to create beautiful and durable designs.
Here are some tips on how to use this guide:
- If you're unsure about the type of material you're using, refer to our materials recommendation chart.
- For each project, start with the recommended temperature and time settings. You may need to make slight adjustments to achieve the best results.
- Always test your settings on scrap material before applying them to your final project.
Understanding the Basics
The ideal settings for heat pressing Heat Transfer Vinyl (HTV) depend on several factors:
Type of HTV: Different HTV materials require varying temperatures and times.
Fabric type: The fabric's composition affects the heat settings.
Heat press machine: The specific model and its capabilities influence the process.
Recommended Settings
Iron-On(HTV) Application Settings Print
| HTV Type |
Temperature (°F/°C) |
Time (seconds) |
| Smooth | 305°F (150°C) | 10-15 |
| Flocked, Glitter, Metallic, Reflective, Fabric, Iridescent | 320°F (160°C) | 15-20 |
| Glow-in-the-dark | 345°F (175°C) | 20-25 |
| Printable (light or dark fabrics) | 345°F (175°C) | 15-20 |
Fabric Temperature Settings
Fabric Type |
Temperature (°F) |
Polyester |
270 |
Cotton |
380 |
Stretch material |
335 |
Full-color, Vintage |
350 |
Stubborn fabrics |
330
|
Additional Tips
- Always consult the HTV manufacturer's guidelines for specific recommendations.
- Experiment with different settings to find the optimal results for your project.
- Use medium pressure for most HTV types, but adjust as needed (e.g., firmer pressure for glitter HTV).
- Allow the fabric to cool completely before peeling the transfer paper for stretchy materials.
- Peeling while hot is often possible for polyester and other synthetic fabrics.
Cautions
- Excessive heat or pressure can damage the fabric and cause discoloration, scorching, or distortion.
- Insufficient heat or pressure may result in poor adhesion , leading to peeling or fading.
HTVRONT Heat Press Setting
Next, let’s learn and understand the temperature and time settings of HTVRONT heat press machines, including automatic heat press machines, cup heat press machines, hat heat press machines and manual heat press machines.

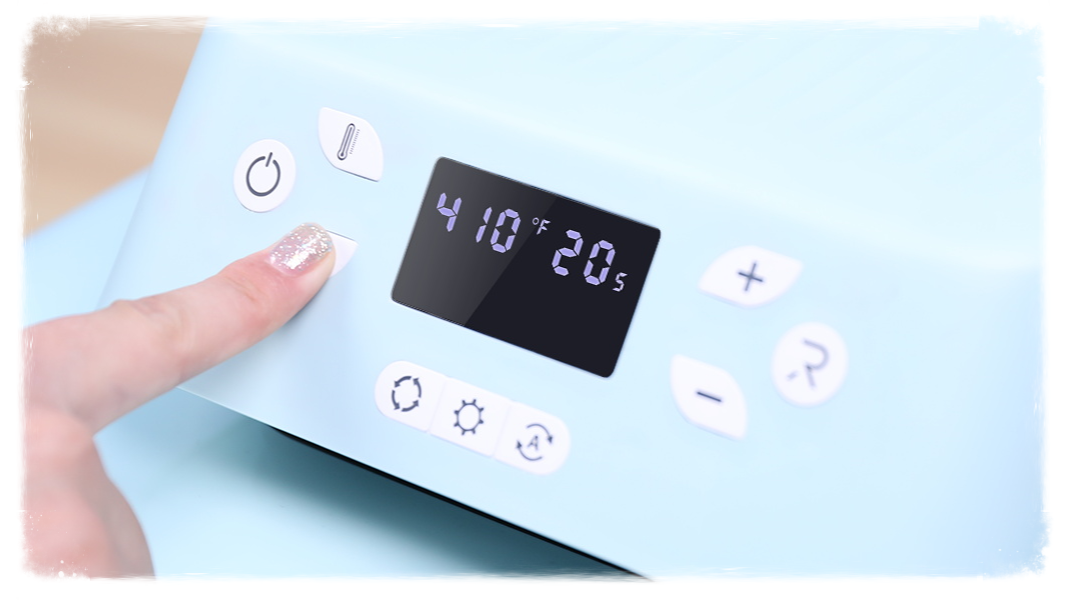

HTVRONT Auto Heat Press Settings
Don't know how to get started with the HTVRONT Auto Press? Learn all about it in this article.
The HTVRONT Auto Heat Press boasts an incredibly user-friendly interface. Effortlessly switch between preset, custom, and automatic modes to complete the entire heat transfer process. The chart below outlines the recommended temperature and time settings for HTV, sublimation paper, and heat transfer paper.
Tips:
- It is recommended to pre-heat your fabric before you begin pressing to ensure it is flat.
- Do not touch your automatic heat press machine until it has completely cooled down after use.
- You cannot adjust the pressure of the HTVRONT Auto Heat Press.
For detailed instructions on applying HTV and sublimation paper to various materials using the HTVRONT automatic heat press, refer to the chart below.
HTVRONT Auto Tumbler Heat Press Settings
New to the HTVRONT Auto Tumbler Press? Start here.
Unlike applying Heat Transfer Vinyl (HTV) to T-shirts and fabrics, the HTVRONT auto tumbler heat press requires specific settings based on the cup type and blank for sublimation.
For detailed sublimation temperature guidelines for different materials, refer to our Sublimation Temperature Chart.
The chart below shows the temperature and time settings for different types of mugs and tumblers.
Tips:
- Be sure to check that your mug/tumbler is an appropriate size for the Auto Tumbler Heat Press before attempting to press it.
- Always wear the included heat-resistant gloves when handling the machine to prevent burns.
Need help with your HTVRONT Auto Tumbler Heat Press? Download the manual PDF now.
HTVRONT Hat Heat Press Settings
Released in March of 2024, the HTVRONT Hat Heat Press Machine uses a clever design that makes personalizing hats much easier. Getting the right heat settings is critical when operating this machine. Follow our reference chart below for the desired heat press temps for HTV.
Tips:
- Be sure to use the ironing hat to give your hat a solid base so that it does not shift around while pressing.
- Keep a firm press on your hat during operation, with small movements to evenly heat your HTV.
HTVRONT Manual Heat Press Settings
While similar to the HTVRONT Auto Press, our newer manual heat presses, released in June of 2024, will require a bit more of a hands-on approach to achieve the same effects. The temperature is easily adjustable and the built-in press timer will help you get the perfect press every time!
Below, you will find our HTVRONT heat press settings for every material.
Tips:
- The top plate of the manual heat press can swivel 360°. Be sure to keep an eye on the cable so that it does not get tangled around the frame.
- Be sure to properly adjust your pressure knob before starting to press.
HTVRONT Mini 3 Heat Press Setting
Don't know much about our Mini3 Heat Press yet? That's okay, click here for more information about Mini3 Heat Press.
The HTVRONT Mini3 heat press has made corresponding improvements to the pain points of the previous generations of mini1 and mini2, such as choosing a more heat-resistant material for the base; improving the heating technology to make the heating more even, and so on, to create a more efficient and durable mini heat press.
The chart below provides you with the temperature, time, and pressure needed to heat press different materials with the mini heat press:
Heat Pressing Tips
When working with Polyester or Sublimated Fabric, remember that it is very soft and does not require much heat. You do not want to leave these materials in the heat for too long. Be sure to dial in your heat settings accordingly before pressing for the best results.
Having a nice, clean surface on your material is also very important. You do not want to use an old or dirty shirt when heat pressing, as the oils and grime will cause your transfer to look unappealing. Make certain that your shirt is pressed flat with no creases.
Heat press vinyl, also known as HTV, is one of the cheapest and easiest materials to work with on a heat press. HTV requires a higher temperature than polyester, with an ideal temperature of about 315°F. You will want to apply strong pressure when working with HTV. typically about 10-15 seconds of pressure is needed for your design to transfer. We recommend preheating your fabric before pressing to speed up the process.
HTVRONT Sublimation HTV Settings
This chart details the optimal heat press settings for applying HTVRONT Sublimation HTV to fabric followed by the sublimation process. It specifies temperature, duration, and peel method for both glossy and matte HTV finishes.
|
HTV Type |
Applying HTV |
Sublimation Process |
| Glossy |
374-392°F / 5-15 seconds / Cold |
374-392°F / 40-60 seconds / Warm |
| Matte |
374-392°F / 5-15 seconds / Cold |
374-392°F / 40-60 seconds / Warm |
Common Problems and Solutions
There are a lot of variables in the HTV heat pressing process, with different materials and machine settings reacting differently from each other. Problems will come up. That is why we have created this list of common occurrences that should quickly help you find the answer to any issues you might be having with your heat press.
1. Why are some or all of the decals coming off with the carrier sheet when peeling it?
The decal might not have had enough time to transfer or the pressure applied wasn't sufficient. To fix this, adjust the time and temperature settings, then repress only the area where the vinyl isn't adhering to the fabric.
2. Why is the entire vinyl decal not sticking to the clothes or the transfer looking uneven despite multiple attempts?
The issue might be due to fabric coatings like antibacterial or water-repellent chemicals preventing the decal from adhering. You can try to remove the coating by washing the fabric . If the problem persists after several attempts, the fabric type might be incompatible with heat transfer vinyl. In this case, try using a different clothing brand and ensure it's labeled as HTV compatible .
3. Why does the vinyl initially stick to the fabric but peel off later, particularly with multi-layer vinyl?
The problem likely arises from incorrectly applied multi-layers . To prevent this, ensure all vinyl layers share the same characteristics (hot peel, warm peel, or cold peel). Additionally, special vinyl types like glitter or metal should always be the top layer as they cannot function as a base.
4. Why do fabrics, especially light-colored ones like polyester or sublimation fabrics, yellow or burn after pressing?
The fabric might be incompatible with high temperatures, or the printing temperature could be too high. Another possibility is oil stains on the fabric. To address this, choose a different fabric, reduce the printing temperature (while staying within recommended limits), and use a Teflon sheet to cover the entire garment during printing. If oil stains are suspected, wash the fabric before printing.
5. Why does the vinyl peel off after washing the garment?
The vinyl likely peels due to improper washing. To prevent this, follow these care instructions: wait 24 hours before wearing, washing, or folding the garment; wash inside out with cold water; avoid ironing directly on the vinyl; and use mild detergents without fabric softener.
Final Thoughts
While this definitely seems like a lot of information, especially to a beginner, don’t let it overwhelm you. You don’t need to learn everything all at once! Take notes on the sections that apply to your machine and come back to this guide if you forget anything.
Remember that the key factors to a good transfer are quality materials, accurate temperature settings, and the right amount of press time. Use our quick-reference charts above to find these settings for your machine and start getting the perfect transfers today!
